S22-M oil-immersed transformers, energy-efficiency Grade 1 from 630 to 2 500 kVA at 10 kV

From 630 to 2 500 kVA at 10 kV, the S22-M meets Grade 1 (NX1) of GB 20052-2024, China's energy-efficiency standard for power transformers, and has a fully sealed tank. A 2 000 kVA, 10 kV unit passed type tests to IEC 60076 and GB standards in May 2026.

Energy-efficiency grade, GB 20052-2024: Grade 1 (NX1), filed range
Tank: Fully sealed
Filed range at 10 kV: 630 to 2 500 kVA

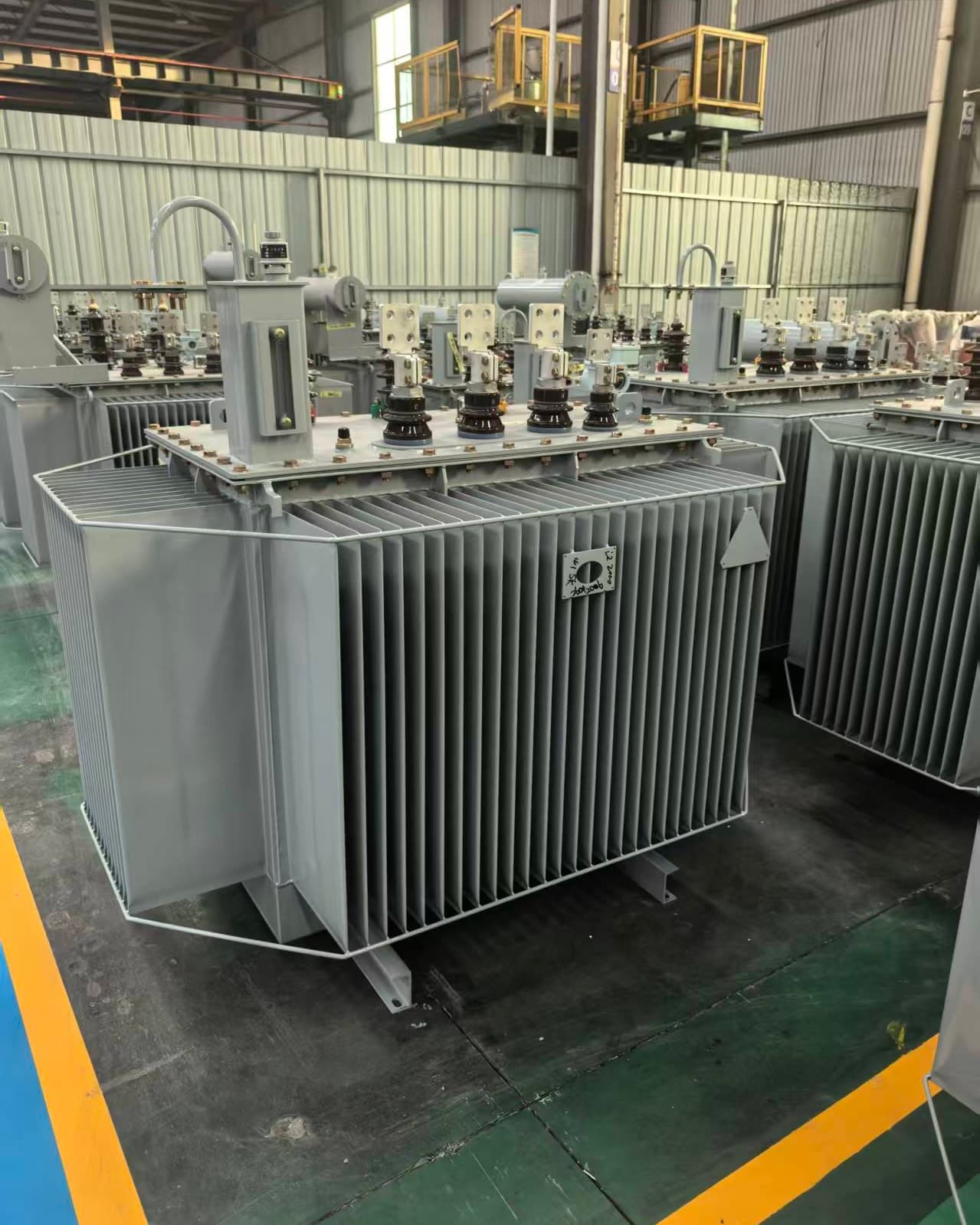

Finished oil-immersed transformers with corrugated tanks, some with conservators, standing in the factory hall — Finished oil-immersed transformers in the hall.

Tested unit

S22-M, 2 000 kVA

S22-M-2000/10-NX1, oil-immersed power transformer, 2 000 kVA, 10 kV. Tested 18 to 22 May 2026; report issued 24 May 2026.

Rated power: 2 000 kVA
Voltage class: 10 kV
Rated short-circuit impedance, principal tap: 5.0 %
Type: Oil-immersed power transformer

Lab: China National Center for Quality Inspection and Test of Electrical Apparatus Products. CMA 230008349829, CNAS L1020, ILAC-MRA
Standards: With 10 Chinese GB and JB/T standards, including GB 20052-2024
Result: Energy-efficiency Grade 1 under GB 20052-2024

Measured losses

Each bar shows the measured loss against the Grade 1 limit in GB 20052-2024 (the line).

No-load loss
Measured 989.0 W. The Grade 1 limit is 1 085 W. 8.8 % below. Rated 1 080 W.
Load loss
Measured 12 659.0 W. The Grade 1 limit is 13 180 W. 4.0 % below. Rated 13 175 W.

Documents

Type-test certificate 20260592 for S22-M-2000/10-NX1, issued by the China National Center for Quality Inspection and Test of Electrical Apparatus Products. Issue date and signature blurred.

Show the whole page

Type-test certificate 20260592
Report 26M1152-S
Energy-efficiency report CEL-A-20260523-951581

A type-test certificate applies to the sample tested in its report.

Ask for the full report

All tests, standards and filing for S22-M

Unit
Tests
Standards
Filing: DQJC-2026-10438: S22-M, 630 to 2 500 kVA, 10 kV, issued 5 June 2026

What Grade 1 means

GB 20052-2024 sets the minimum allowable energy efficiency for power transformers and grades them. Grade 1 (NX1 in the model code) is the top grade, with the strictest loss limits in the standard. The lab measured this unit's losses and judged them against the standard.

Filed range

Model filing certificate DQJC-2026-10438 registers the S22-M from 630 to 2 500 kVA at 10 kV under China's transformer model filing rules. It is based on report 26M1152-S and was issued on 5 June 2026.

Model filing certificate DQJC-2026-10438, issued 5 June 2026.

Other ratings and voltages

Our range covers 6, 10, 11, 13.2, 13.8, 15, 20, 22, 33, 34.5 and 35 kV, at 50 or 60 Hz. [TBC: which of these the S22-M is built for, the kVA ratings and frequencies offered, and whether they keep Grade 1]

Send your rating in the quote form and we'll reply with what we can build.
